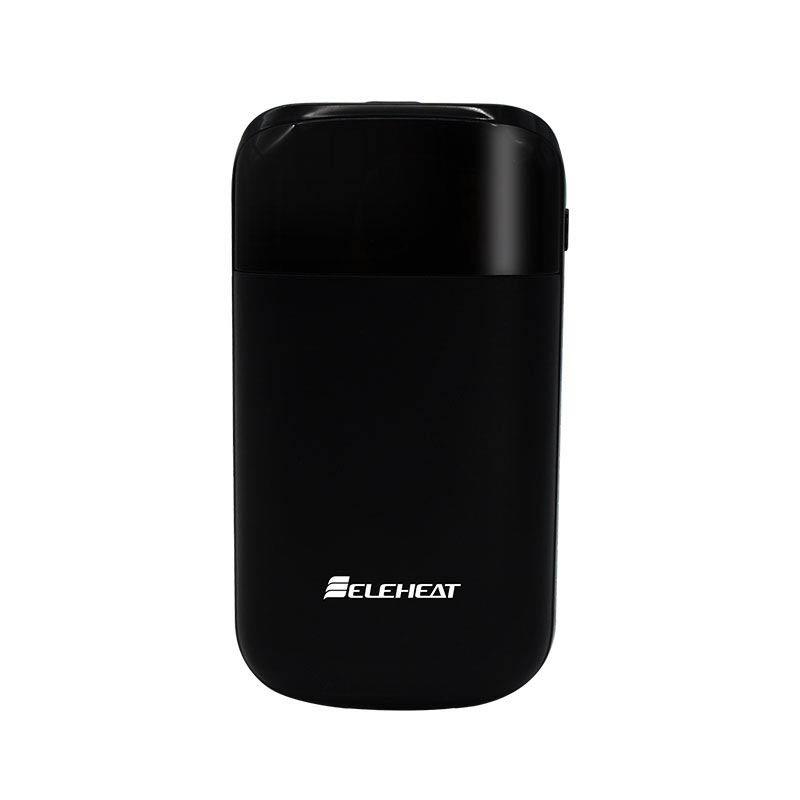

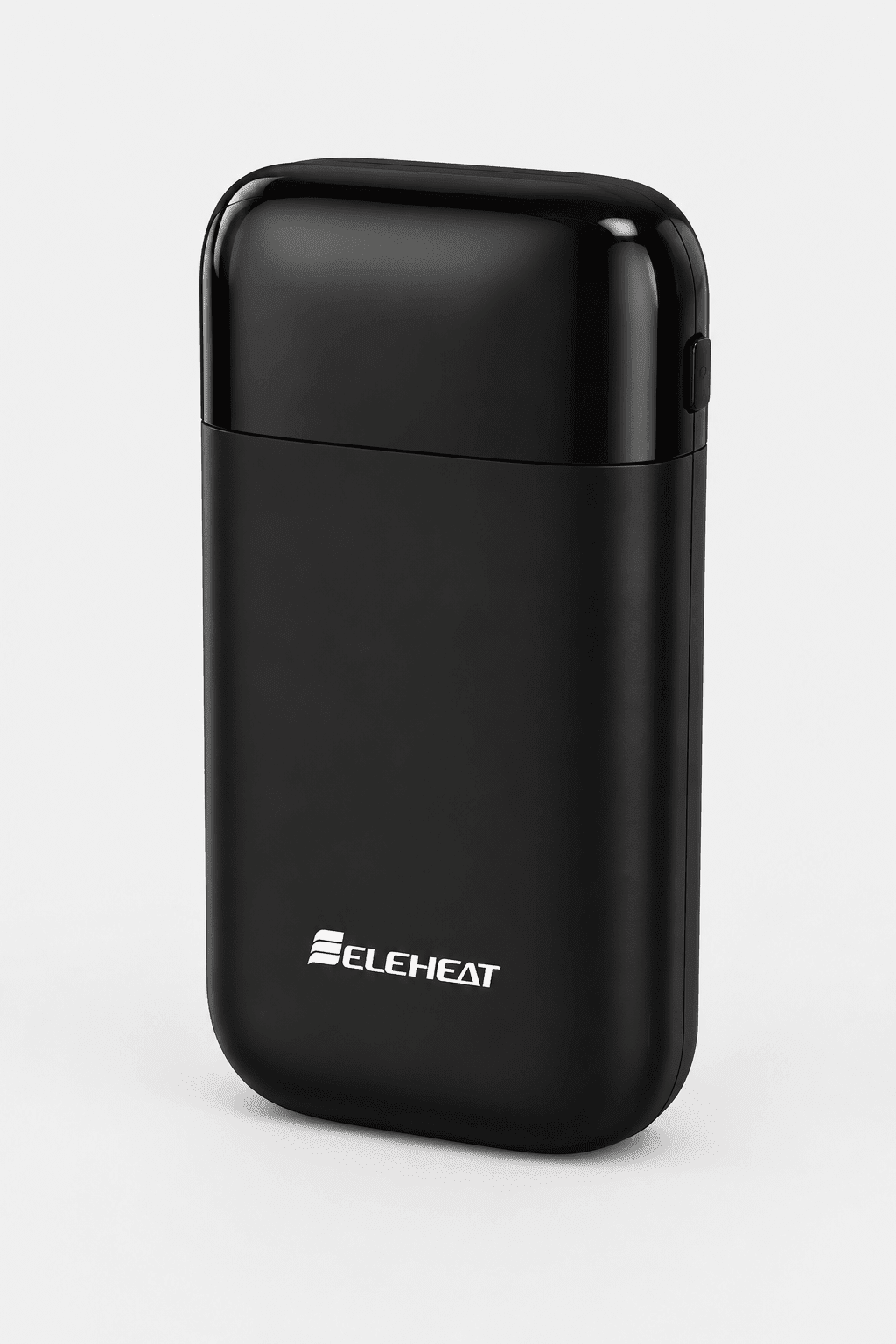

10000mAh Rechargeable Lithium Battery EH-BAT-007 for Heated & Cooling Apparel

Engineered for professional-grade thermal management apparel, the 10000mAh Lithium Battery EH-BAT-007 combines high-capacity performance with versatile connectivity. Constructed from 18650 lithium-ion cells, the battery delivers reliable power for heated jackets, cooling vests, and other wearable thermal devices. The dual DC 5.5mm/USB (Type A) discharge ports support simultaneous operation of multiple heating/cooling elements, while the DC 5.5mm charging port ensures compatibility with standard adapters. With a maximum output of 33Wh, the battery balances energy density and portability, ideal for all-day use in industrial, outdoor, or medical settings.


The battery features an industry-standard 12.6V input with 13A current (note: potential specification clarification needed, as 12.6V/13A equals 163.8W input, which may exceed typical charging standards). Built-in safety systems include overcharge protection, thermal cutoff, and short-circuit prevention, ensuring safe integration into wearable gear. Its customizable design allows adjustments to size, voltage specs, and connector types to match specific apparel requirements.
44 people are viewing this right now

Product Details

Product Details

Parameter Details
Battery Type 18650 Lithium-Ion (Li-ion)
Nominal Capacity 10000mAh
Energy Capacity 74Wh (calculated at 7.4V nominal voltage)
Input Voltage/Current 12.6V / 13A (DC 5.5mm port)
Output Voltage/Current DC 5.5mm: 9V/2A, 12V/1.5A
USB Type A: 5V/2.4A
Max Output Power 33Wh (at 12V/2.75A)
Charge Time ~4.5 hours (estimated at 12.6V/1.3A, pending specification confirmation)
Cycle Life >500 cycles (80% capacity retention)
Dimensions Customizable (Standard: 150×70×25mm)
Weight Approx. 300g (Standard size)
Operating Temperature Charge: 0–45℃ / Discharge: -20–60℃
Safety Features Overcharge protection, thermal shutdown, short-circuit prevention
Certification CE, RoHS, UN38.3 (Available on request)
Customization Options Size, voltage output, connector type (USB-C/DC port), color, logo printing
