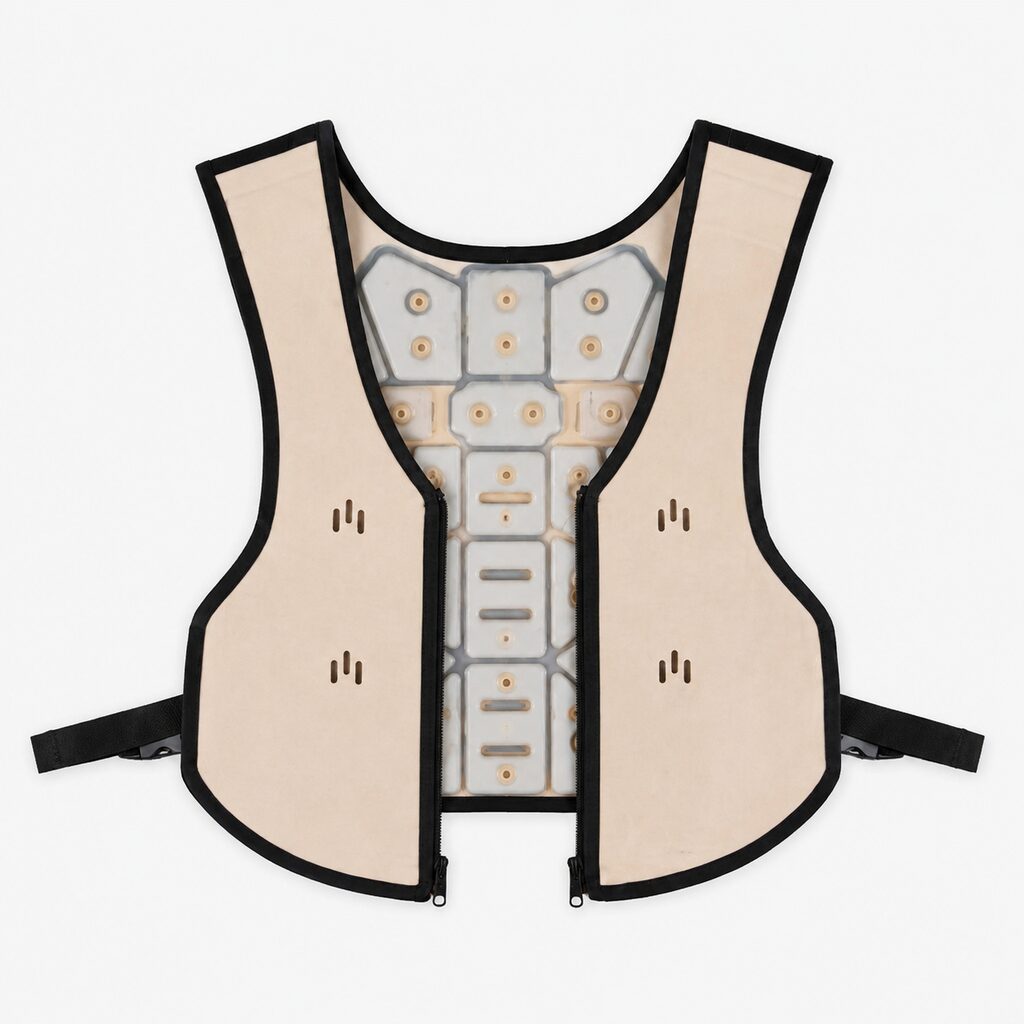

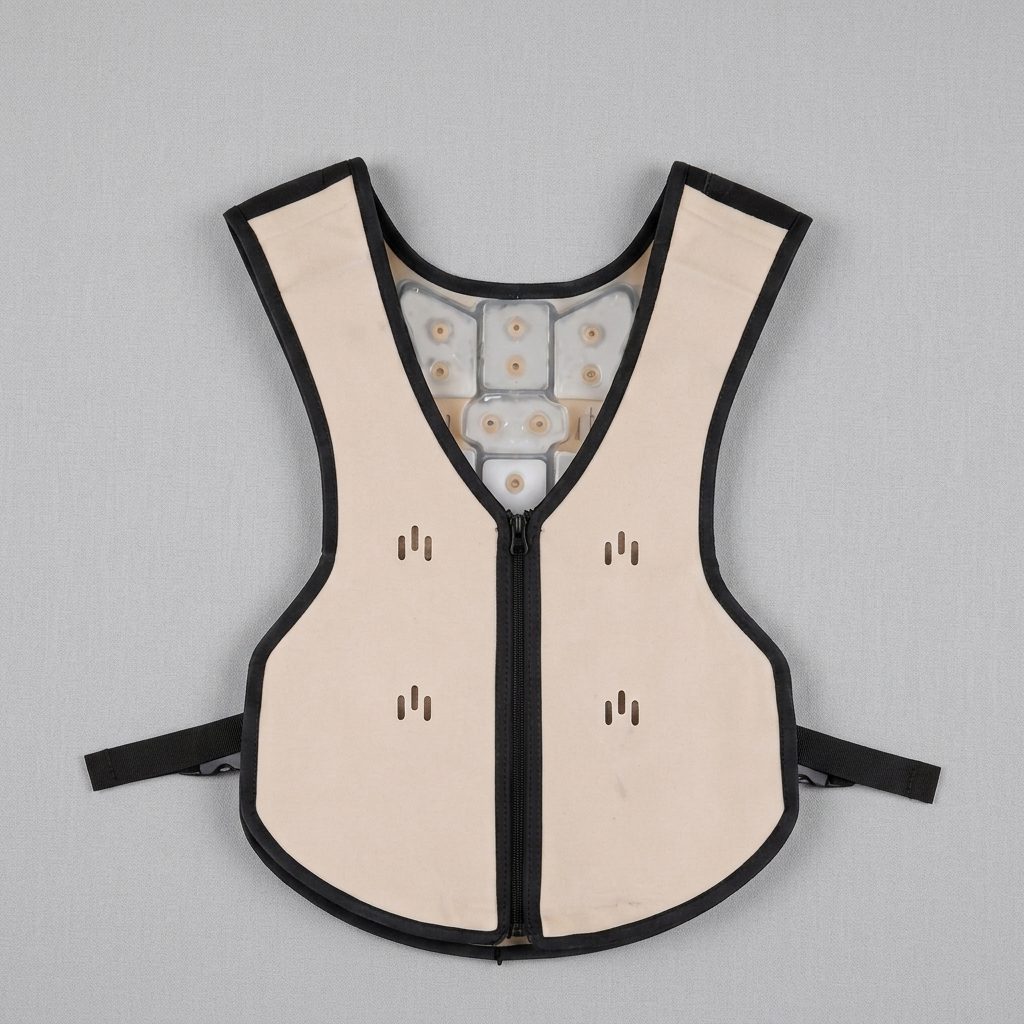

Front Zipper PCM Phase Change Cooling Vest, Adjustable Side Strap Waistcoat for Chest & Back Cooling

Front zipper design for easy wearing and removal. Built with multiple PCM phase change cold storage modules and garment vent holes. Side straps for tightness adjustment, providing simultaneous cooling on chest and back.

Description

Specifications

Parameter Details
Fabric Composite Fabric
Size Customizable
Closure Type Front Zipper
Adjustment Structure Side Elastic Straps
Internal Configuration Multiple Independent PCM Phase Change Cold Storage Modules
Breathable Design Vent holes distributed on garment for better wearing comfort
Cold Charging Method Freeze in refrigerator, reusable
Cooling Area Full coverage on chest and back
Application Scenarios High-temperature work, outdoor construction, industrial heat prevention
Working time 2-4 hours per pack set
Voltage None, passive

Inside the PCM phase change system

Frozen phase-change packs absorb body heat at a constant temperature. No power, no pump, no ice water, and the packs are re-frozen between shifts in any standard freezer.

How it works

  1. Freeze the packsLay the PCM packs flat in a freezer until solid. A normal freezer is enough; no specialised equipment is required.
  2. Load the vestSlide the packs into the chest and back pockets before putting the garment on.
  3. Cooling at a fixed temperatureThe packs melt at a set point, so the garment stays cool instead of gradually warming up.

Compare the seven routes

TechnologyRuntimePower
Water circulation4-8 h12 V DC
PCM phase change2-4 hPassive
Peltier / TEC3-5 h12-24 V DC
Evaporative4-6 hPassive
Fan cooling8-12 h12 V DC
Battery & fan kits8-12 h12-50 V DC
New design line4-10 h12-50 V DC

Runtime and power are typical figures for the range, not guarantees for a single model. The full specification is in the table above.

Before you order

How long does one frozen set last?

2 to 4 hours per set. Runtime depends on the number of packs used and the workload.

How do I recharge it?

Refreeze the packs. Two sets in rotation cover a full shift with no battery management at all.

Is it allowed in areas with battery restrictions?

Yes. The garment is completely passive, which is why it is common in fuel handling, kitchens and rescue work.

Applications & FAQ

How it works

Frozen phase change packs sit in pockets over the chest and back. The material melts at a fixed temperature, absorbing body heat without any power source, and stays at that temperature until the phase change completes. Packs are swapped for a fresh set and re-frozen between shifts.

Applications

  • Fire and rescue rehab cycles
  • Road works and asphalt paving
  • Food processing and cold chain
  • Sites where batteries are not allowed

Working temperature

Effective between 30 °C and 50 °C ambient, with the best result in still air where the pack stays below melting point.

Customisation and MOQ

MOQ is 50 pieces for stock models and 200 pieces for custom colour, logo, reflective tape or packaging. Samples are ready in 7 to 10 days and bulk production takes 25 to 35 days after approval. Battery packs and fan kits carry a 12 month warranty on electrical parts.

Questions about this model

How long does one set of packs last?

Two to four hours at 35 °C ambient depending on workload, and the pack set can be re-frozen more than 1,000 times.

How do I choose a size for close-fitting wear?

Size L fits a 96 to 104 cm chest with packs inserted. Measure over a base layer, and size up for wear over a coverall.

Can I add reflective tape or a company logo?

Yes, reflective tape, logo embroidery and printed panels are available from 200 pieces.
