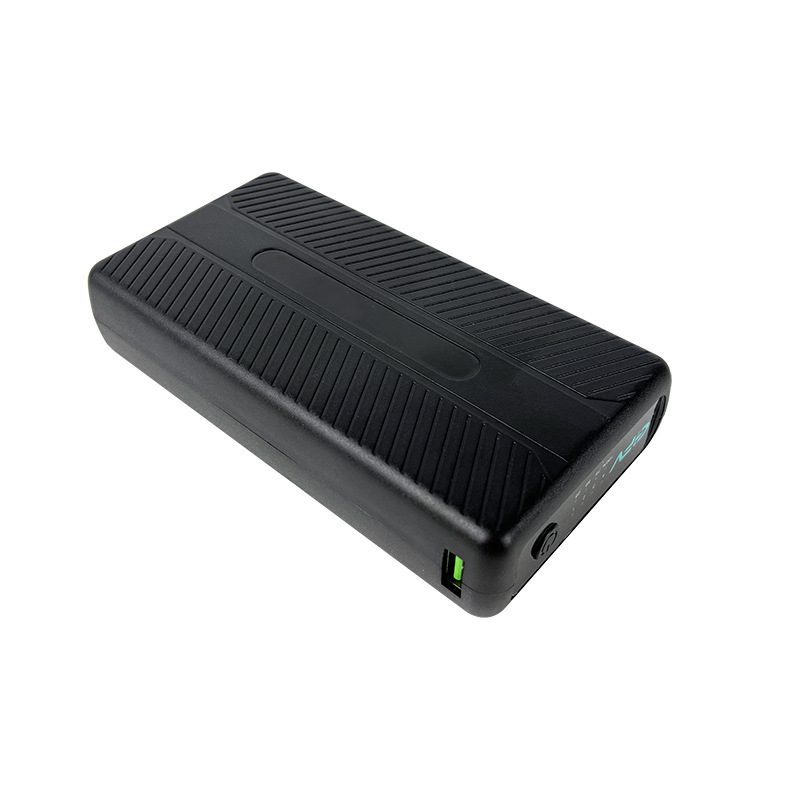

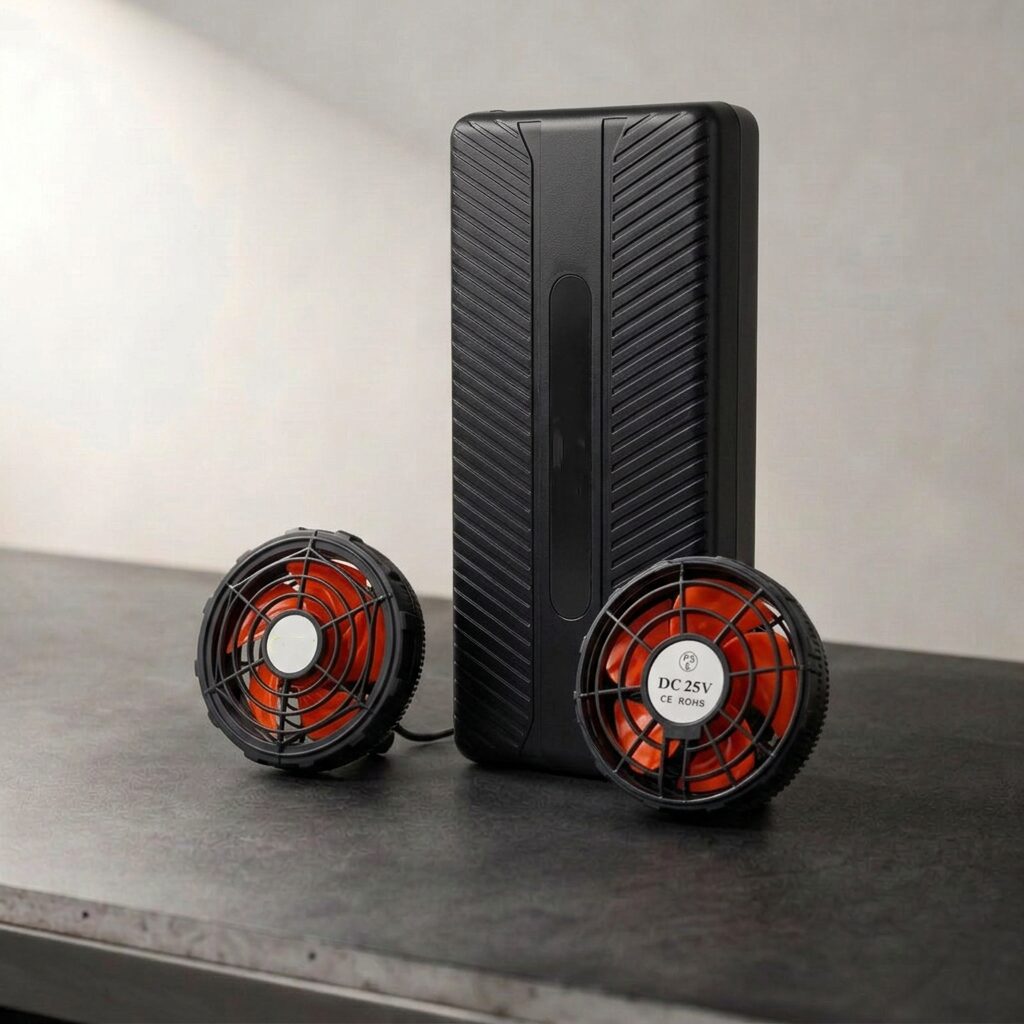

G21 25V 20000mAh Cooling Vest Battery | S9-02-25V Brushless Fan Kit

G21‑25V matching battery accessories for cooling work clothes, 20000mAh large capacity with 25V high voltage output. Paired with S9‑02‑25V brushless fan. Built-in charge and discharge protection board, PSE certified, wide temperature operating range with 1200 charge cycles. Suitable for wearable cooling work garments, delivers long-lasting heat dissipation for high-temperature working conditions.

Description

Specifications

Item Specification
Protection Function With charge & discharge protection board
Storage Temperature -20~50℃
Charging Operating Temperature -20~50℃
Discharging Operating Temperature -20~50℃
Imported or Not Non-imported
Product Certification PSE
Working time 8-12 hours at low speed
Voltage 25 V DC

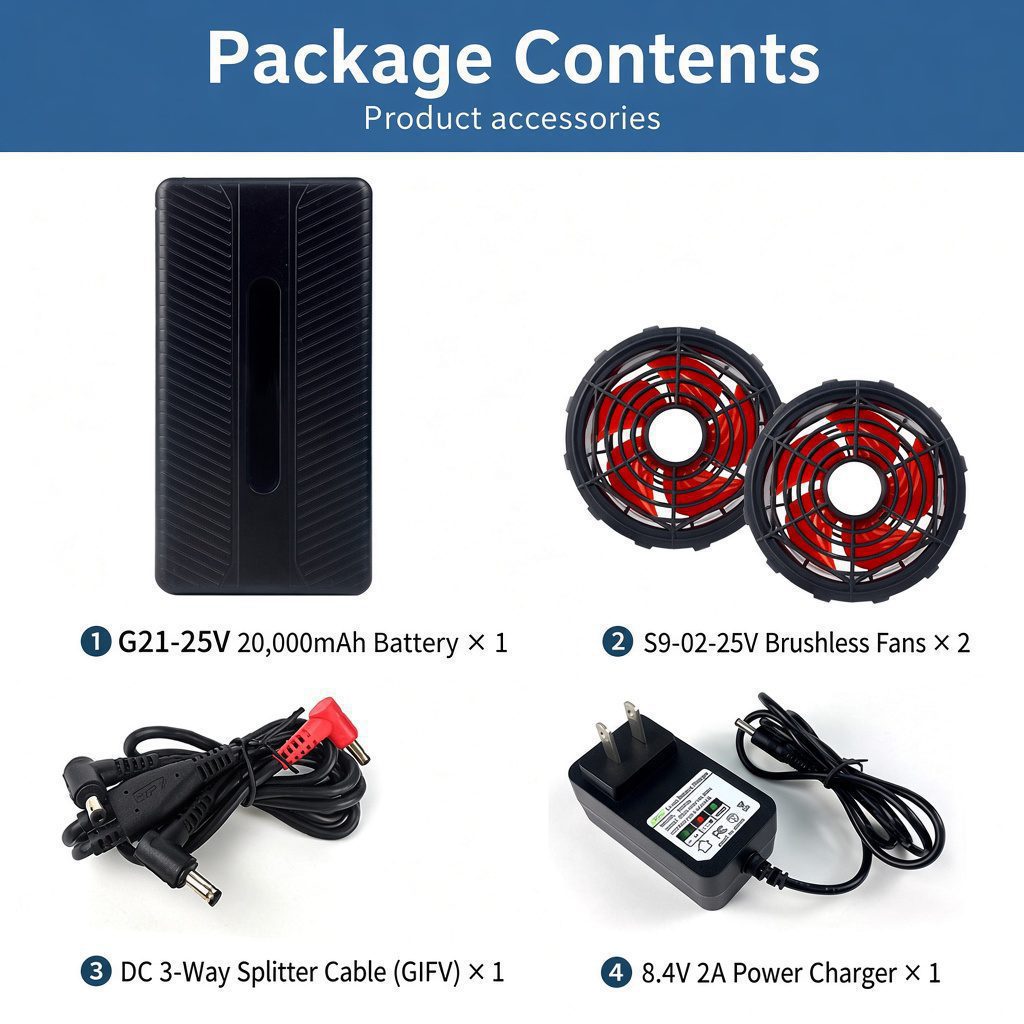

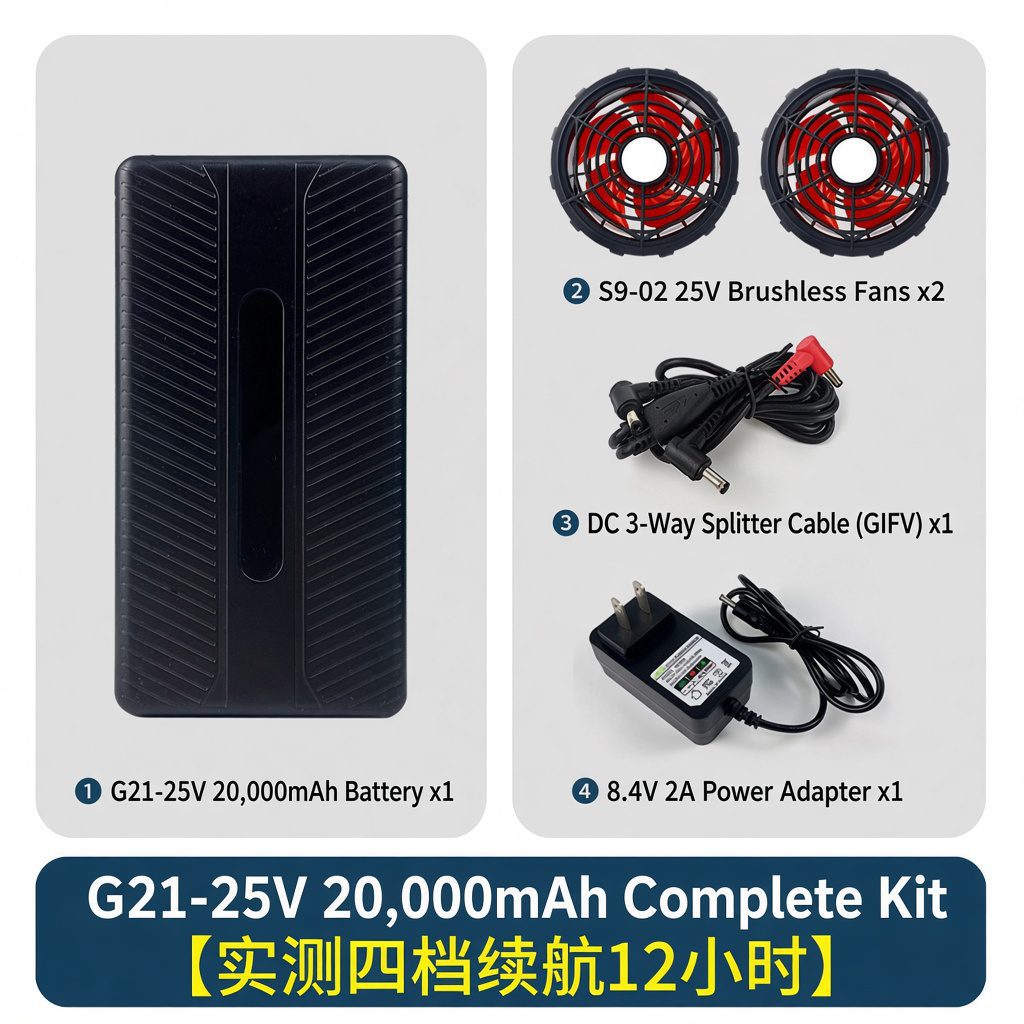

Inside the Battery & fan kits system

Complete kit format: a lithium pack, a controller and brushless fans, from 12 V up to 50 V. Bought when the fan or the coolant has to run independently of the garment.

How it works

  1. Match the pack to the fanChoose the voltage that suits the fan or cooling unit. Kits are supplied from 12 V up to 50 V.
  2. Mount the fansFix the fan units to the garment or harness with the supplied clips.
  3. Run from the controllerThe controller sets speed and protects the pack from over-discharge.

Compare the seven routes

TechnologyRuntimePower
Water circulation4-8 h12 V DC
PCM phase change2-4 hPassive
Peltier / TEC3-5 h12-24 V DC
Evaporative4-6 hPassive
Fan cooling8-12 h12 V DC
Battery & fan kits8-12 h12-50 V DC
New design line4-10 h12-50 V DC

Runtime and power are typical figures for the range, not guarantees for a single model. The full specification is in the table above.

Before you order

Can I buy a battery without a garment?

Yes. Packs, controllers and fan units are sold separately for replacements and fleet spares.

What runtime should I expect?

8 to 12 hours per pack at low speed. Larger capacity packs are available for long shifts.

Are the packs interchangeable?

Within the same voltage class, yes. Kits are built around a shared connector standard.

Applications & FAQ

How it works

Brushless fans at the waist pull outside air through the jacket and release it at the collar and cuffs, so a constant airflow moves across the torso. Moving air accelerates sweat evaporation and lowers perceived temperature without cooling the fabric itself.

Applications

  • Construction and site work
  • Warehouse and logistics
  • Manufacturing and assembly
  • Utility and maintenance crews

Working temperature

Effective from 28 °C to 50 °C ambient. Performance drops in still air because the fans need a clear intake.

Customisation and MOQ

MOQ is 50 pieces for stock models and 200 pieces for custom colour, logo, reflective tape or packaging. Samples are ready in 7 to 10 days and bulk production takes 25 to 35 days after approval. Battery packs and fan kits carry a 12 month warranty on electrical parts.

Questions about this model

How long do the fan kits run on one charge?

Eight to twelve hours at low speed and four to six hours at high speed on a 20,000 mAh pack.

How do I choose a size for close-fitting wear?

Size L fits a 96 to 104 cm chest. Fan jackets are worn as an outer layer, so order your normal workwear size.

Can I add reflective tape or a company logo?

Yes, including hi-vis and reflective versions, from 200 pieces.
